TDA3827 - TV-sound demodulator circuit

NXP

The TDA3827 by NXP is a TV-sound demodulator circuit. Below is the official datasheet preview.

📥 Download Datasheet

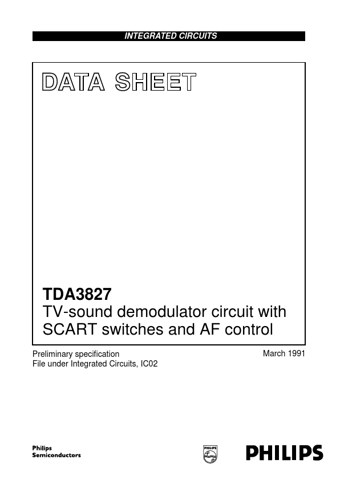

TDA3827 TV-sound demodulator circuit by NXP - Datasheet Preview — Official preview page of the TDA3827 TV-sound demodulator circuit datasheet (NXP).

Datasheet Details

Part number	TDA3827
Manufacturer	NXP
File Size	121.88 KB
Description	TV-sound demodulator circuit
Datasheet	TDA3827_PhilipsSemiconductors.pdf
Additional preview pages of the TDA3827 datasheet.

TDA3827 Product details

Description

The TDA3827 contains a single FM demodulator with SCART switches, a mute function and volume control.

Features

Wide supply voltage range from 4.5 V to 13.2 V.
Wide frequency range from 4 to 12 MHz.
High ripple rejection.
High precision and temperature compensated FM-demodulator output.
Multiple-input AF operational amplifiers with offset compensation.
SCART AF input / AF output (low impedance).
External AF input.
High-level AF output voltage with low distortion.
External selection of the source selector AF gain.
Lo.
