TDA1011 2 to 6 W audio power amplifier

TDA1011 Description

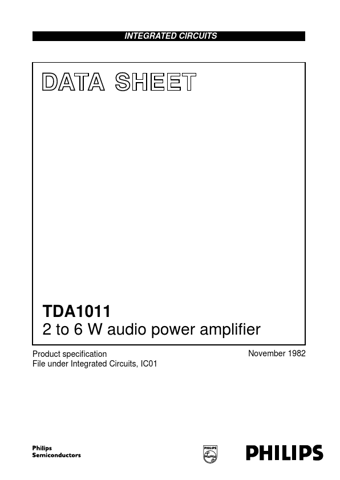

INTEGRATED CIRCUITS DATA SHEET TDA1011 2 to 6 W audio power amplifier Product specification File under Integrated Circuits, IC01 November 1982 Phili.

TDA1011 Features

* are:
* single in-line (SIL) construction for easy mounting
* separated preamplifier and power amplifier
* high output power
* thermal protection
* high input impedance
* low current drain
* limited noise behaviour at radio frequencies QUICK REF

TDA1011 Applications

* and delivers up to 4 W in a 4 Ω load impedance. The device can deliver up to 6 W into 4 Ω at 16 V loaded supply in mains-fed applications. The maximum permissible supply voltage of 24 V makes this circuit very suitable for d. c. and a. c. apparatus, while the very low applicable supply voltage of 3,6
