SAA7160 - PCI Express based audio and video bridge

NXP

Datasheet Details

Part number	SAA7160
Manufacturer	NXP ↗
File Size	290.35 KB
Description	PCI Express based audio and video bridge
Datasheet	SAA7160_NXP.pdf

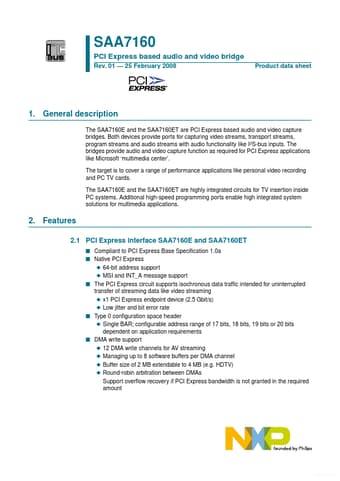

The SAA7160E and the SAA7160ET are PCI Express based audio and video capture bridges.

2.1 PCI Express interface SAA7160E and SAA7160ET I Compliant to PCI Express Base Speciﬁcation 1.0a I Native PCI Express N 64-bit address support N MSI and INT_A message support I The PCI Express circuit supports isochronous data trafﬁc intended for uninterrupted transfer of streaming data like video streaming N x1 PCI Express endpoint device (2.5 Gbit/s) N Low jitter and bit error rate I Type 0 conﬁguration space header N Single BAR; conﬁgurable address range of 17 bits, 18 bits, 19 bits or 20 b.
