SAA7151B - Digital multistandard colour decoder with SCART interface DMSD2-SCART

Name: SAA7151B
SKU: SAA7151B-274311

NXP

📥 Download Datasheet

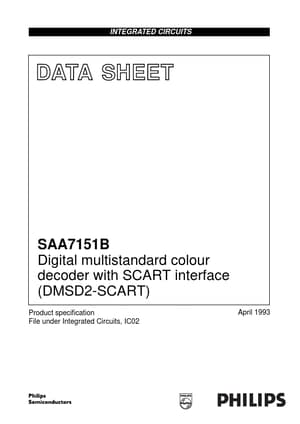

SAA7151B Datasheet Preview — Preview of SAA7151B PDF

Datasheet Details

Part number	SAA7151B
Manufacturer	NXP
File Size	311.46 KB
Description	Digital multistandard colour decoder with SCART interface DMSD2-SCART
Datasheet	SAA7151B_PhilipsSemiconductors.pdf

SAA7151B Product details

Description

The SAA7151B is a digital multistandard colour-decoder having two 8-bit input channels, one for CVBS or Y, the other for chrominance or time-multiplexed colour-difference signals. MIN.

Features

8-bit performance on chip for luminance and chrominance signal processing for PAL, NTSC and SECAM standards.
Separate 8-bit luminance and 8-bit chrominance input signals from Y/C, CVBS, S-Video (S-VHS or Hi8) sources.
SCART signal insertion by means of RGB/YUV convertion; fast switch handling.
Horizontal and vertical sync detection for all standards.
Real time control output RTCO.
Fast sync recovery of vertical blanking for VCR signals (bott.
