SAA7112 Decoder with High-Performance Scaler HPS for Image Port PELICAN

SAA7112 Description

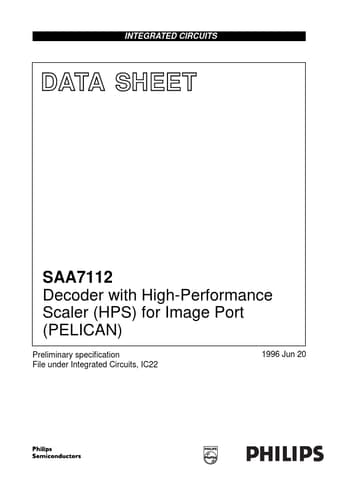

INTEGRATED CIRCUITS DATA SHEET SAA7112 Decoder with High-Performance Scaler (HPS) for Image Port (PELICAN) Preliminary specification File under Integ.
The PELICAN SAA7112 is a video capture device for applications at the image port of VGA controllers.

SAA7112 Applications

* with 6-bit phase accuracy
* Two independent programming sets for scaler part, to define two ‘ranges’ per field or per frame
* Field-wise switching between decoder-part and expansion port input
* Brightness, contrast and saturation controls for scaled outputs. VBI-data decode
