S9KEAZ64ACLK - 32-bit MCU

Download the S9KEAZ64ACLK datasheet PDF (S9KEA128P80M48SF0 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 32-bit mcu.

Description

Part numbers for the chip have fields that identify the specific part.

You can use the values of these fields to determine the specific part you have received.

All information provided in this document is subject to legal disclaimers.

30 January 2024

Features

  • 1.1 Operating characteristics.
  • Voltage range: 2.7 to 5.5 V.
  • Flash write voltage range: 2.7 to 5.5 V.
  • Temperature range (ambient): -40 to 125°C 1.2 Performance.
  • Up to 48 MHz Arm® Cortex-M0+ core.
  • Single cycle 32-bit x 32-bit multiplier.
  • Single cycle I/O access port 1.3 Memories and memory interfaces.
  • Up to 128 KB flash.
  • Up to 16 KB RAM 1.4 Clocks.
  • Oscillator (OSC) - supports 32.768 kHz crystal or 4 MHz to 24 MHz crys.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (S9KEA128P80M48SF0-NXP.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Other Datasheets by NXP

Full PDF Text Transcription

Click to expand full text

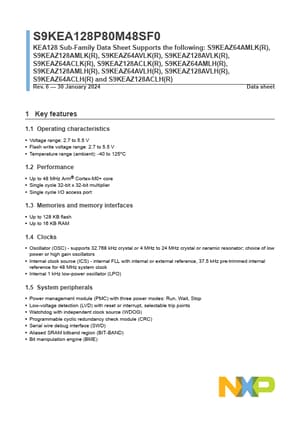

S9KEA128P80M48SF0 KEA128 Sub-Family Data Sheet Supports the following: S9KEAZ64AMLK(R), S9KEAZ128AMLK(R), S9KEAZ64AVLK(R), S9KEAZ128AVLK(R), S9KEAZ64ACLK(R), S9KEAZ128ACLK(R), S9KEAZ64AMLH(R), S9KEAZ128AMLH(R), S9KEAZ64AVLH(R), S9KEAZ128AVLH(R), S9KEAZ64ACLH(R) and S9KEAZ128ACLH(R) Rev. 6 — 30 January 2024 Data sheet 1 Key features 1.1 Operating characteristics • Voltage range: 2.7 to 5.5 V • Flash write voltage range: 2.7 to 5.5 V • Temperature range (ambient): -40 to 125°C 1.2 Performance • Up to 48 MHz Arm® Cortex-M0+ core • Single cycle 32-bit x 32-bit multiplier • Single cycle I/O access port 1.3 Memories and memory interfaces • Up to 128 KB flash • Up to 16 KB RAM 1.4 Clocks • Oscillator (OSC) - supports 32.
