S1J - SMA controlled avalanche rectifiers

Description

DO-214AC surface mountable package with glass passivated chip.

The well-defined void-free case is of a transfer-moulded thermo-setting plastic.

The small rectangular package has two J bent leads.

Features

  • Glass passivated.
  • High maximum operating temperature.
  • Ideal for surface mount automotive.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
S1J SURFACE MOUNT RECTIFIER PAN JIT
S1J 1.0A Surface Mount Rectifier TAITRON
S1J 1.0A SURFACE MOUNT GLASS PASSIVATED STANDARD DIODE WON-TOP
S1J General-Purpose Rectifiers Fairchild Semiconductor
S1J 1 Amp Silicon Rectifier Micro Commercial Components

Other Datasheets by NXP Semiconductors

Part Number Description

Full PDF Text Transcription

Click to expand full text

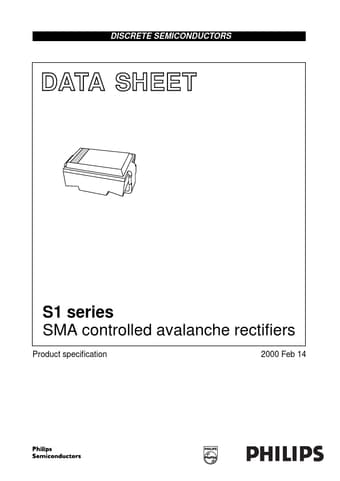

DISCRETE SEMICONDUCTORS DATA SHEET book, halfpage M3D168 S1 series SMA controlled avalanche rectifiers Product specification 2000 Feb 14 Philips Semiconductors Product specification SMA controlled avalanche rectifiers FEATURES • Glass passivated • High maximum operating temperature • Ideal for surface mount automotive applications • Low leakage current • Excellent stability • Guaranteed avalanche energy absorption capability • UL 94V-O classified plastic package • Shipped in 12 mm embossed tape • Marking: cathode, date code, type code • Easy pick and place. Top view olumns S1 series DESCRIPTION DO-214AC surface mountable package with glass passivated chip. The well-defined void-free case is of a transfer-moulded thermo-setting plastic.
