QN9022 - Ultra low power Bluetooth

Download the QN9022 datasheet PDF (QN9020 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for ultra low power bluetooth.

Description

QN902x is an ultra low power, high performance and highly integrated Bluetooth LE solution.

It is used in Bluetooth Smart applications such as sports and fitness, human interface devices, and app-enabled smart accessories.

Features

  • True single-chip Bluetooth LE SoC solution.
  • Integrated Bluetooth LE radio.
  • Complete Bluetooth LE protocol stack and.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (QN9020-NXP.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • QN9020 - Ultra Low Power BLE System-on-Chip (Quintic)
  • QN9021 - Ultra Low Power BLE System-on-Chip (Quintic)
Other Datasheets by NXP
  • QN9020 - Ultra low power Bluetooth
  • QN9021 - Ultra low power Bluetooth
  • QN9030 - Bluetooth Low Energy 5.0 wireless MCU
  • QN9030T - Bluetooth Low Energy 5.0 wireless MCU
  • QN9080 - Ultra low power Bluetooth-5 system-on-chip
  • QN9080-001-M17 - Ultra Low-Power Bluetooth Smart-5.0 SIP
  • QN9083 - Ultra low power Bluetooth-5 system-on-chip
  • QN9090 - Bluetooth Low Energy 5.0 wireless MCU

Full PDF Text Transcription

Click to expand full text

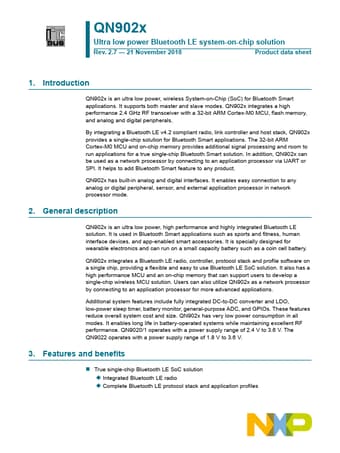

QN902x Ultra low power Bluetooth LE system-on-chip solution Rev. 2.7 — 21 November 2018 Product data sheet 1. Introduction QN902x is an ultra low power, wireless System-on-Chip (SoC) for Bluetooth Smart applications. It supports both master and slave modes. QN902x integrates a high performance 2.4 GHz RF transceiver with a 32-bit ARM Cortex-M0 MCU, flash memory, and analog and digital peripherals. By integrating a Bluetooth LE v4.2 compliant radio, link controller and host stack, QN902x provides a single-chip solution for Bluetooth Smart applications. The 32-bit ARM Cortex-M0 MCU and on-chip memory provides additional signal processing and room to run applications for a true single-chip Bluetooth Smart solution.
