PZT2907A - PNP switching transistor

Description

PNP switching transistor in a SOT223 plastic package.

NPN complement: PZT2222A.

Fig.1 Simplified outline (SOT223) and symbol.

Features

  • High current (max. 600 mA).
  • Low voltage (max. 60 V).

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
PZT2907A PNP General Purpose Amplifier Fairchild Semiconductor
PZT2907A SOT-223 PACKAGE PNP SILICON TRANSISTOR Motorola Inc
PZT2907A PNP Silicon Epitaxial Transistor ON Semiconductor
PZT2907A PNP Silicon Planar Epitaxial Transistor WEITRON
PZT2907A Suface Mount Si-Epitaxial Planar Switching Transistors Diotec

Other Datasheets by NXP Semiconductors

Part Number Description
PZT2222A NPN switching transistor
PZT3904 NPN switching transistor
PZT3906 PNP switching transistor
PZT4401 NPN switching transistor
PZT4403 PNP switching transistor

Full PDF Text Transcription

Click to expand full text

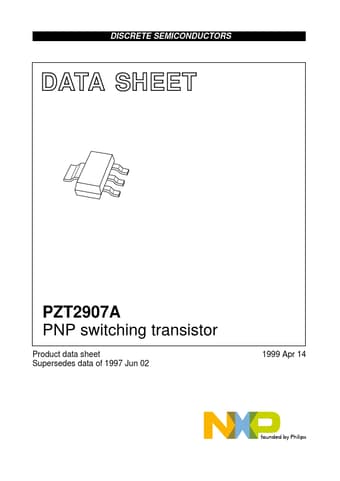

DISCRETE SEMICONDUCTORS DATA SHEET handbook, halfpage M3D087 PZT2907A PNP switching transistor Product data sheet Supersedes data of 1997 Jun 02 1999 Apr 14 NXP Semiconductors PNP switching transistor Product data sheet PZT2907A FEATURES • High current (max. 600 mA) • Low voltage (max. 60 V). APPLICATIONS • Switching and linear amplification. DESCRIPTION PNP switching transistor in a SOT223 plastic package. NPN complement: PZT2222A. PINNING PIN 1 2, 4 3 base collector emitter DESCRIPTION handbook, halfpage 4 2, 4 1 3 1 2 3 Top view MAM288 Fig.1 Simplified outline (SOT223) and symbol. LIMITING VALUES In accordance with the Absolute Maximum Rating System (IEC 134).
