PESD3V3L1UA - Low Capacitance Unidirectional ESD Protection Diodes

Name: PESD3V3L1UA
SKU: PESD3V3L1UA-647885

NXP

📥 Download Datasheet

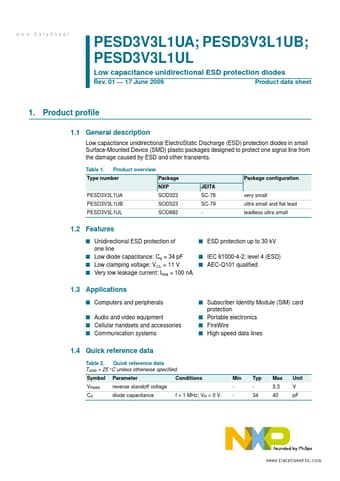

PESD3V3L1UA Datasheet Preview — Preview of PESD3V3L1UA PDF

Datasheet Details

Part number	PESD3V3L1UA
Manufacturer	NXP
File Size	152.73 KB
Description	Low Capacitance Unidirectional ESD Protection Diodes
Datasheet	PESD3V3L1UA_PhilipsSemiconductors.pdf

PESD3V3L1UA Product details

Description

Low capacitance unidirectional ElectroStatic Discharge (ESD) protection diodes in small Surface-Mounted Device (SMD) plastic packages designed to protect one signal line from the damage caused by ESD and other transients.

Features

I Unidirectional ESD protection of one line I Low diode capacitance: Cd = 34 pF I Low clamping voltage: VCL = 11 V I Very low leakage current: IRM = 100 nA I ESD protection up to 30 kV I IEC 61000-4-2; level 4 (ESD) I AEC-Q101 qualiﬁed 1.3.
