PESD12VS1UL, PESD3V3S1UL - Unidirectional ESD protection diodes

Name: PESD12VS1UL
SKU: PESD12VS1UL-972785

NXP

📥 Download Datasheet

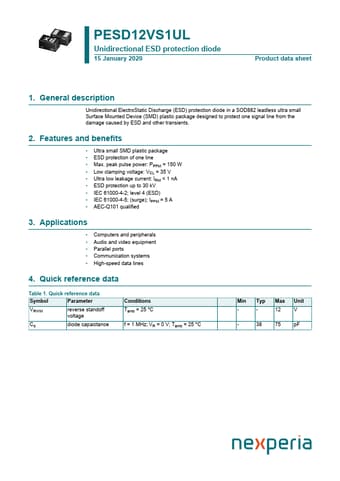

PESD12VS1UL Datasheet Preview — This datasheet PDF includes multiple part numbers: PESD12VS1UL, PESD3V3S1UL. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	PESD12VS1UL, PESD3V3S1UL
Manufacturer	NXP
File Size	221.37 KB
Description	Unidirectional ESD protection diodes
Datasheet	PESD3V3S1UL-NXP.pdf
Note	This datasheet PDF includes multiple part numbers: PESD12VS1UL, PESD3V3S1UL. Please refer to the document for exact specifications by model.

PESD12VS1UL Product details

Description

Unidirectional ElectroStatic Discharge (ESD) protection diode in a SOD882 leadless ultra small Surface Mounted Device (SMD) plastic package designed to protect one signal line from the damage caused by ESD and other transients.

Features

Ultra small SMD plastic package.
ESD protection of one line.
Max. peak pulse power: PPPM = 150 W.
Low clamping voltage: VCL = 35 V.
Ultra low leakage current: IRM < 1 nA.
ESD protection up to 30 kV.
IEC 61000-4-2; level 4 (ESD).
IEC 61000-4-5; (surge); IPPM = 5 A.
AEC-Q101 qualified 3.
