PCK2010 CK98 100/133MHz Spread Spectrum System Clock Generator

NXP

PCK2010 Description

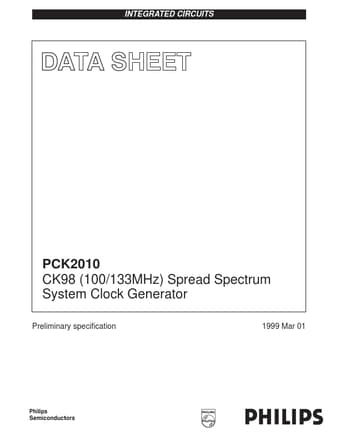

INTEGRATED CIRCUITS PCK2010 CK98 (100/133MHz) Spread Spectrum System Clock Generator Preliminary specification 1999 Mar 01 Philips Semiconductors P.
The PCK2010 is a clock synthesizer/driver chip for a PentiumII and other similar processors.

PCK2010 Features

* Mixed 2.5V and 3.3V operation
* Four CPU clocks at 2.5V
* Eight PCI clocks at 3.3V, one free-running (synchronous with CPU clocks) PIN CONFIGURATION VSS REF0 REF1 VDD3V XTAL_IN XTAL_OUT VSS PCICLK_F PCICLK1 VDD3V PCICLK2 PCICLK3 VSS PCICLK4 PCICLK5 VDD3V PCICLK6 PCICLK7 V

📥 Download Datasheet

PCK2010 Datasheet Preview — Preview of PCK2010 PDF

Datasheet Details

Part number: PCK2010
Manufacturer: NXP ↗
File Size: 113.39 KB
Datasheet: PCK2010_PhilipsSemiconductors.pdf
Description: CK98 100/133MHz Spread Spectrum System Clock Generator
