PCF83C552, PCF80C552 - 8-Bit Microcontroller

NXP

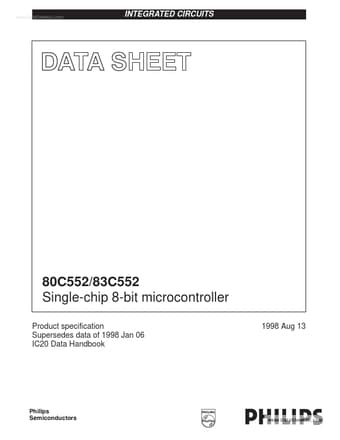

📥 Download Datasheet

PCF83C552 Datasheet Preview — This datasheet PDF includes multiple part numbers: PCF83C552, PCF80C552. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	PCF83C552, PCF80C552
Manufacturer	NXP
File Size	232.35 KB
Description	8-Bit Microcontroller
Datasheet	PCF80C552_PhilipsSemiconductors.pdf
Note	This datasheet PDF includes multiple part numbers: PCF83C552, PCF80C552. Please refer to the document for exact specifications by model.

PCF83C552 Product details

Description

The 80C552/83C552 (hereafter generically referred to as 8XC552) Single-Chip 8-Bit Microcontroller is manufactured in an advanced CMOS process and is a derivative of the 80C51 microcontroller family. 83C552 8k bytes mask programmable ROM Three operating ambient temperature ranges: P83C552xBx: 0°C to +70°C P83C552xFx: 40°C to +85°C (XTAL frequency

Features

80C51 central processing unit.
8k × 8 ROM expandable externally to 64k bytes.
I2C-bus serial I/O port with byte oriented master and slave functions Full-duplex UART compatible with the standard 80C51 On-chip watchdog timer Three speed ranges:.
3.5 to 16MHz.
3.5 to 24MHz (ROM, ROMless only).
3.5 to 30MHz (ROM, ROMless only).
ROM co.
