PCA9955Q900, PCA9952-Q900 - 16-channel constant current LED driver

Name: PCA9955Q900
SKU: PCA9955Q900-967861

NXP

📥 Download Datasheet

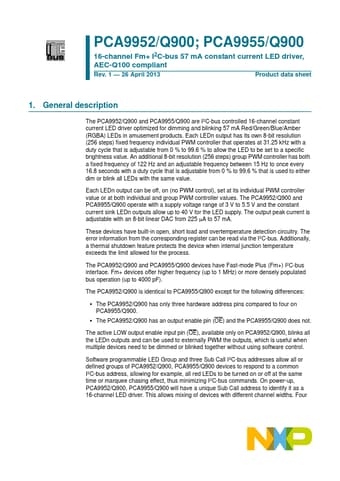

PCA9955Q900 Datasheet Preview — This datasheet PDF includes multiple part numbers: PCA9955Q900, PCA9952-Q900. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	PCA9955Q900, PCA9952-Q900
Manufacturer	NXP
File Size	472.21 KB
Description	16-channel constant current LED driver
Datasheet	PCA9952-Q900-NXP.pdf
Note	This datasheet PDF includes multiple part numbers: PCA9955Q900, PCA9952-Q900. Please refer to the document for exact specifications by model.

PCA9955Q900 Product details

Description

The PCA9952/Q900 and PCA9955/Q900 are I2C-bus controlled 16-channel constant current LED driver optimized for dimming and blinking 57 mA Red/Green/Blue/Amber (RGBA) LEDs in amusement products.

Features

Compliant with AEC-Q100.
16 LED drivers. Each output programmable at:.
Off.
On.
Programmable LED brightness.
Programmable group dimming/blinking mixed with individual LED brightness.
Programmable LEDn output enable delay to reduce EMI and surge currents.
16 constant current output channels can sink up to 57 mA, tolerate up to 40 V when OFF.
Output current adjusted through an external resistor.
Output current accuracy.
6 % between output ch.
