PCA9553 - 4-bit I2C LED driver

Name: PCA9553
SKU: PCA9553-36527

NXP

📥 Download Datasheet

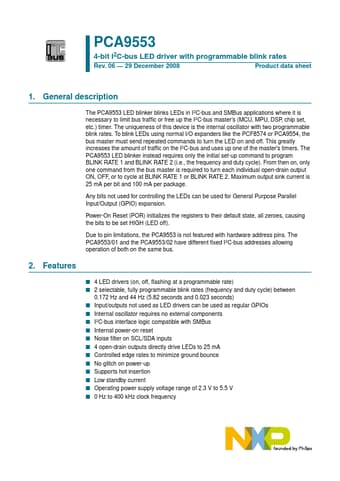

PCA9553 Datasheet Preview — Preview of PCA9553 PDF

Datasheet Details

Part number	PCA9553
Manufacturer	NXP
File Size	129.02 KB
Description	4-bit I2C LED driver
Datasheet	PCA9553_PhilipsSemiconductors.pdf

PCA9553 Product details

Description

The PCA9553 LED blinker blinks LEDs in I2C-bus and SMBus applications where it is necessary to limit bus trafﬁc or free up the I2C-bus master's (MCU, MPU, DSP, chip set, etc.) timer.

Features

I 4 LED drivers (on, off, ﬂashing at a programmable rate) I 2 selectable, fully programmable blink rates (frequency and duty cycle) between 0.172 Hz and 44 Hz (5.82 seconds and 0.023 seconds) I Input/outputs not used as LED drivers can be used as regular GPIOs I Internal oscillator requires no external components I I2C-bus interface logic compatible with SMBus I Internal power-on reset I Noise ﬁlter on SCL/SDA inputs I 4 open-drain outputs directly drive LEDs to 25 mA I Controlled edge rates to.
