PCA9410 - DC-to-DC boost converter

NXP

📥 Download Datasheet

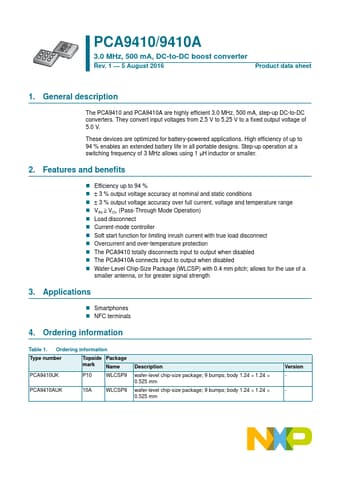

PCA9410 Datasheet Preview — Preview of PCA9410 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	PCA9410
Manufacturer	NXP
File Size	1.11 MB
Description	DC-to-DC boost converter
Datasheet	PCA9410-NXP.pdf

PCA9410 Product details

Description

The PCA9410 and PCA9410A are highly efficient 3.0 MHz, 500 mA, step-up DC-to-DC converters.

Features

Efficiency up to 94 %.
 3 % output voltage accuracy at nominal and static conditions.
 3 % output voltage accuracy over full current, voltage and temperature range.
VINVO, (Pass-Through Mode Operation).
Load disconnect.
Current-mode controller.
Soft start function for limiting inrush current with true load disconnect.
Overcurrent and over-temperature protection.
The PCA9410 totally disconnects input to output when disabled.
The PCA9410A con.
