PBSS5140V - 40 V low VCEsat PNP transistor

Description

PNP low VCE sat transistor in a SOT666 plastic package.

NPN complement: PBSS4140V.

Features

300 mW total power dissipation.
Very small 1.6 mm × 1.2 mm × 0.55 mm ultra thin package.
Improved thermal behaviour due to flat leads.
Self alignment during soldering due to straight leads.
Low collector-emitter saturation voltage.
High current capability.

Datasheet Details

Part number	PBSS5140V
Manufacturer	NXP Semiconductors
File Size	47.00 KB
Description	40 V low VCEsat PNP transistor
Datasheet	PBSS5140V Datasheet
Additional preview pages of the PBSS5140V datasheet.

📁 Similar Datasheet

PBSS5140S - Silicon PNP transistor (BLUE ROCKET ELECTRONICS)

PBSS5140T - Silicon PNP transistor (BLUE ROCKET ELECTRONICS)

PBSS5112PAP - 1A PNP/PNP low VCEsat (BISS) transistor (nexperia)

PBSS5130PAP - 1A PNP/PNP low VCEsat (BISS) transistor (nexperia)

PBSS5130T - PNP Transistor (NXP Semiconductors)

PBSS5130T - 1A PNP low VCEsat transistor (nexperia)

PBSS5160DS - 60V 1A PNP/PNP low VCEsat (BISS) transistor (NXP Semiconductors)

PBSS5160K - 60V 1A PNP low VCEsat (BISS) transistor (NXP Semiconductors)

PBSS5160PAP - 1A PNP/PNP low VCEsat (BISS) transistor (nexperia)

Full PDF Text Transcription

Click to expand full text

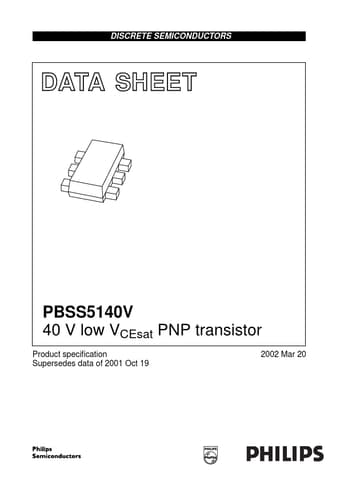

DISCRETE SEMICONDUCTORS DATA SHEET M3D744 PBSS5140V 40 V low VCEsat PNP transistor Product speciﬁcation Supersedes data of 2001 Oct 19 2002 Mar 20 Philips Semiconductors Product speciﬁcation 40 V low VCEsat PNP transistor FEATURES • 300 mW total power dissipation • Very small 1.6 mm × 1.2 mm × 0.55 mm ultra thin package • Improved thermal behaviour due to flat leads • Self alignment during soldering due to straight leads • Low collector-emitter saturation voltage • High current capability APPLICATIONS • General purpose switching and muting • LCD back lighting • Supply line switching circuits • Battery driven equipment (mobile phones, video cameras and hand-held devices). DESCRIPTION PNP low VCE sat transistor in a SOT666 plastic package. NPN complement: PBSS4140V.
