OM4068 - LCD driver for low multiplex rates

OM4068 Description

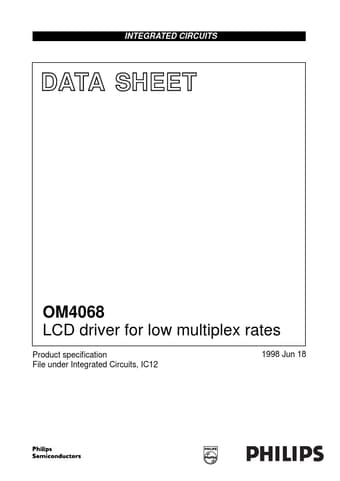

INTEGRATED CIRCUITS DATA SHEET OM4068 LCD driver for low multiplex rates Product specification File under Integrated Circuits, IC12 1998 Jun 18 Phil.
plastic quad flat package; 44 leads (lead length 1.

OM4068 Features

* Single-chip LCD controller/driver
* Static/duplex/triplex drive modes with up to 32/64/96 LCD segments drive capability per device
* Selectable backplane drive configuration: static or 2 or 3 backplane multiplexing
* Selectable display bias configuration drive: stat

OM4068 Applications

* Logic supply voltage range (VDD
* VSS) of 2.5 to 5.5 V
* Display supply voltage range (VLCD
* VSS) of 3.5 to 6.5 V
* Low power consumption, suitable for battery operated systems
* No external components needed by the oscillator
* Manufactured
