NT3H1201 - Energy harvesting NFC Forum Type 2 Tag

Product Overview

NXP

📥 Download Datasheet

NT3H1201 Energy harvesting NFC Forum Type 2 Tag by NXP - Datasheet Preview — Datasheet preview – NT3H1201

Datasheet Details

Part number	NT3H1201
Manufacturer	NXP
File Size	1.78 MB
Description	Energy harvesting NFC Forum Type 2 Tag
Datasheet	NT3H1201 Datasheet
Note	This datasheet PDF includes multiple part numbers: NT3H1201, NT3H1101. Please refer to the document for exact specifications by model.

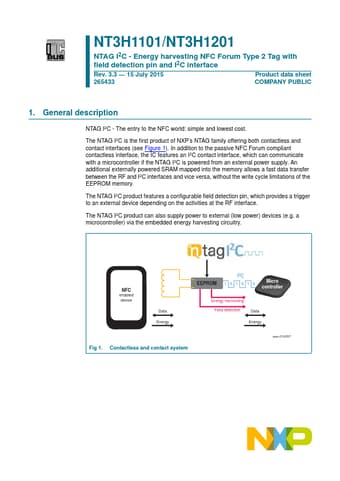

Additional preview pages of the NT3H1201 datasheet.

Product details

Description

NTAG I2C - The entry to the NFC world: simple and lowest cost.

Features

2.1 Key features.
RF interface NFC Forum Type 2 Tag compliant.
I2C interface.
Configurable field detection pin based on open drain implementation that can be triggered upon the following events:.
RF field presence.
First start of communication.
Selection of the tag only.
64 byte SRAM buffer for fast transfer of data (Pass-through mode) between the RF and the I2C interfaces located outside the User Memory.
Wake up signal at the field detect pin when:.
