NE56605-42 System reset

NXP

NE56605-42 Description

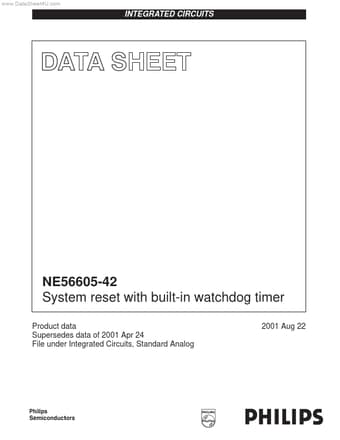

www.DataSheet4U.com INTEGRATED CIRCUITS NE56605-42 System reset with built-in watchdog timer Product data Supersedes data of 2001 Apr 24 File under .
The NE56605-42 is designed to generate a reset signal, at a threshold voltage of 4.

NE56605-42 Features

* Both positive and negative logic reset output signals are available
* Accurate threshold detection
* Internal power-on reset delay
* Internal watchdog timer programmable with external capacitor
* Watchdog monitoring time of 10 ms
* Reset assertion w

NE56605-42 Applications

* Microcomputer systems
* Logic systems. R VS 7 NE56605-42 8 RESET GENERATOR 2 RESET LOGIC SYSTEM RESET RESET CLK RESET CLK GND R C VREF PROGRAMMABLE WATCHDOG TIMER 3 4 GND 1 CT SL01282 Figure 1. Simplified system diagram. ORDERING INFORMATION PACKAGE TYPE NUMBER NE56605

📥 Download Datasheet

NE56605-42 Datasheet Preview — Preview of NE56605-42 PDF

Datasheet Details

Part number: NE56605-42
Manufacturer: NXP ↗
File Size: 211.39 KB
Datasheet: NE56605-42_PhilipsSemiconductors.pdf
Description: System reset
