MPX5010 - Integrated silicon pressure sensor

Name: MPX5010
SKU: MPX5010-1534069

NXP

📥 Download Datasheet

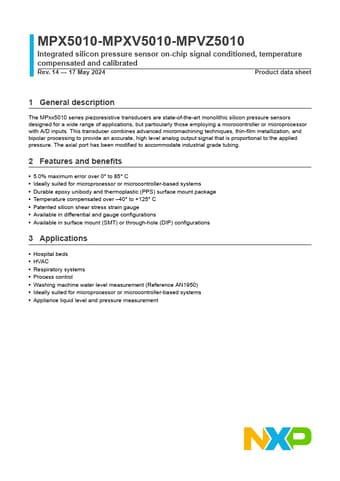

MPX5010 Datasheet Preview — Preview of MPX5010 PDF

Datasheet Details

Part number	MPX5010
Manufacturer	NXP
File Size	753.46 KB
Description	Integrated silicon pressure sensor
Datasheet	MPX5010-NXP.pdf

MPX5010 Product details

Description

The MPxx5010 series piezoresistive transducers are state-of-the-art monolithic silicon pressure sensors designed for a wide range of applications, but particularly those employing a microcontroller or microprocessor with A/D inputs.

Features

5.0% maximum error over 0° to 85° C.
Ideally suited for microprocessor or microcontroller-based systems.
Durable epoxy unibody and thermoplastic (PPS) surface mount package.
Temperature compensated over.
40° to +125° C.
Patented silicon shear stress strain gauge.
Available in differential and gauge configurations.
Available in surface mount (SMT) or through-hole (DIP) configurations 3.
