MPC5646C - Microcontroller

NXP

📥 Download Datasheet

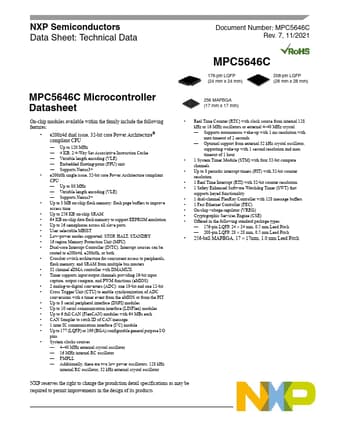

MPC5646C Datasheet Preview — Preview of MPC5646C PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MPC5646C
Manufacturer	NXP
File Size	1.54 MB
Description	Microcontroller
Datasheet	MPC5646C-NXP.pdf

MPC5646C Product details

Description

. . . . . .

Features

e200z4d dual issue, 32-bit core Power Architecture compliant CPU.
Up to 120 MHz.
4 KB, 2/4-Way Set Associative Instruction Cache.
Variable length encoding (VLE).
Embedded floating-point (FPU) unit.
Supports Nexus3+.
e200z0h single issue, 32-bit core Power Architecture compliant CPU.
Up to 80 MHz.
Variable length encoding (VLE).
Supports Nexus3+.
Up to 3 MB on-chip flash memory: flash page buffer.
