MMA8125EGR2, MMA8225EGR2 - Digital X-Axis or Z-Axis Accelerometer

NXP

The MMA8125EGR2 by NXP is a Digital X-Axis or Z-Axis Accelerometer. Below is the official datasheet preview.

📥 Download Datasheet

MMA8125EGR2 Digital X-Axis or Z-Axis Accelerometer by NXP - Datasheet Preview — Official preview page of the **MMA8125EGR2** Digital X-Axis or Z-Axis Accelerometer datasheet (NXP).

Datasheet Details

Part number	MMA8125EGR2, MMA8225EGR2
Manufacturer	NXP
File Size	559.13 KB
Description	Digital X-Axis or Z-Axis Accelerometer
Datasheet	MMA8225EGR2-NXP.pdf
Note	This datasheet PDF includes multiple part numbers: MMA8125EGR2, MMA8225EGR2. Please refer to the document for exact specifications by model.

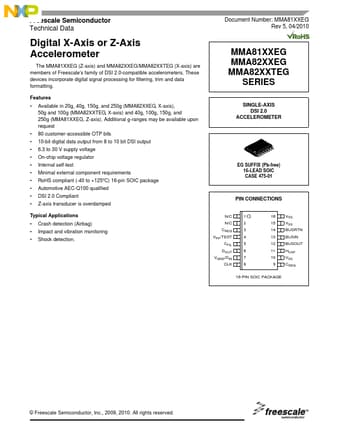

Additional preview pages of the MMA8125EGR2 datasheet.

MMA8125EGR2 Product details

Description

MMA81XXEG/MMA82XXEG/MMA82XXTEG family is a satellite accelerometer which is comprised of a single axis, variable capacitance sensing element with a single channel interface IC.

Features

Available in 20g, 40g, 150g, and 250g (MMA82XXEG, X-axis), 50g and 100g (MMA82XXTEG, X-axis) and 40g, 100g, 150g, and 250g (MMA81XXEG, Z-axis). Additional g-ranges may be available upon request.
80 customer-accessible OTP bits.
10-bit digital data output from 8 to 10 bit DSI output.
6.3 to 30 V supply voltage.
On-chip voltage regulator.
Internal self-test.
Minimal external component requirements.
RoHS compliant (-40 to +125.
