MKV42F256VLL16 - 168MHz ARM Cortex-M4 core based Microcontroller

Download the MKV42F256VLL16 datasheet PDF. This datasheet also covers the MKV46F256VLL16 variant, as both devices belong to the same 168mhz arm cortex-m4 core based microcontroller family and are provided as variant models within a single manufacturer datasheet.

Features

  • include; dual 12-bit analog-to-digital converters with 240ns conversion time, up to 30 PWM channels for support of multi-motor systems, eFlexPWM module with 312 ps resolution for digital power conversion.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MKV46F256VLL16-NXP.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
MKV30F128VFM10 Microcontroller Freescale Semiconductor
MKV30F128VLF10 Microcontroller Freescale Semiconductor
MKV30F128VLH10 Microcontroller Freescale Semiconductor
MKV30F64VFM10 Microcontroller Freescale Semiconductor
MKV30F64VLF10 Microcontroller Freescale Semiconductor

Other Datasheets by NXP Semiconductors

Part Number Description
MKV42F256VLH16 168MHz ARM Cortex-M4 core based Microcontroller
MKV42F128VLF16 168MHz ARM Cortex-M4 core based Microcontroller
MKV42F128VLH16 168MHz ARM Cortex-M4 core based Microcontroller
MKV42F128VLL16 168MHz ARM Cortex-M4 core based Microcontroller
MKV42F64VLF16 168MHz ARM Cortex-M4 core based Microcontroller

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

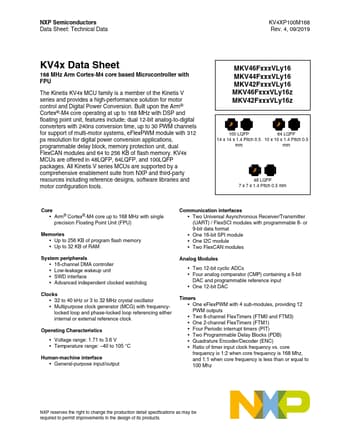

NXP Semiconductors Data Sheet: Technical Data KV4XP100M168 Rev. 4, 09/2019 KV4x Data Sheet 168 MHz Arm Cortex-M4 core based Microcontroller with FPU The Kinetis KV4x MCU family is a member of the Kinetis V series and provides a high-performance solution for motor control and Digital Power Conversion. Built upon the Arm® Cortex®-M4 core operating at up to 168 MHz with DSP and floating point unit, features include; dual 12-bit analog-to-digital converters with 240ns conversion time, up to 30 PWM channels for support of multi-motor systems, eFlexPWM module with 312 ps resolution for digital power conversion applications, programmable delay block, memory protection unit, dual FlexCAN modules and 64 to 256 KB of flash memory. KV4x MCUs are offered in 48LQFP, 64LQFP, and 100LQFP packages.
