MKM33Z64ACLL5 - Microcontroller

Download the MKM33Z64ACLL5 datasheet PDF (MKM14Z64ACHH5 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for microcontroller.

Description

2.2 Format4 2.3 Fields4 2.4 Example5 3 Terminology and guidelines5 3.1 Definition: Operating requirement5 3.2 Definition: Operating behavior6 3.3 Definition: Attribute6 3.4 Definition: Rating6 3.5 Result of exceeding a rating7 3.6 Relationship between ratings and operating requirements7 3.7 Guideli

Features

  • Operating Characteristics.
  • Voltage range: 1.71 V to 3.6 V (when Analog Front End (AFE) is not used).
  • Voltage range: 2.7 V to 3.6 V (when Analog Front End (AFE) is used).
  • iRTC battery supply voltage range: 1.71 to 3.6 V.
  • Flash write voltage range: 1.71 to 3.6 V.
  • Temperature range (ambient): -40°C to 85°C.
  • Performance.
  • Up to 50 MHz ARM Cortex-M0+ core delivering 0.95 Dhrystone MIPS per MHz.
  • Memories and memory interf.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MKM14Z64ACHH5-NXP.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Other Datasheets by NXP

Full PDF Text Transcription

Click to expand full text

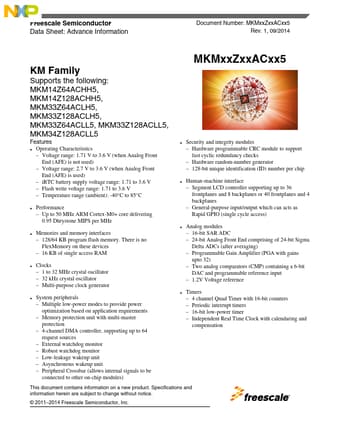

Freescale Semiconductor Data Sheet: Advance Information Document Number: MKMxxZxxACxx5 Rev. 1, 09/2014 KM Family Supports the following: MKM14Z64ACHH5, MKM14Z128ACHH5, MKM33Z64ACLH5, MKM33Z128ACLH5, MKM33Z64ACLL5, MKM33Z128ACLL5, MKM34Z128ACLL5 Features • Operating Characteristics – Voltage range: 1.71 V to 3.6 V (when Analog Front End (AFE) is not used) – Voltage range: 2.7 V to 3.6 V (when Analog Front End (AFE) is used) – iRTC battery supply voltage range: 1.71 to 3.6 V – Flash write voltage range: 1.71 to 3.6 V – Temperature range (ambient): -40°C to 85°C • Performance – Up to 50 MHz ARM Cortex-M0+ core delivering 0.95 Dhrystone MIPS per MHz • Memories and memory interfaces – 128/64 KB program flash memory.
