ARCHIVE INFORMATION ARCHIVE INFORMATION

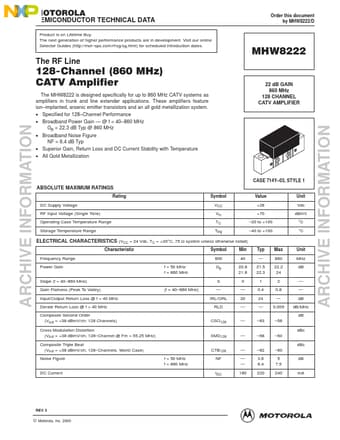

MOTOROLA
SEMICONDUCTOR TECHNICAL DATA
Product Is on Lifetime Buy. The next generation of higher performance products are in development. Visit our online Selector Guides (http://mot–sps.com/rf/sg/sg.html) for scheduled introduction dates.
The RF Line
128-Channel (860 MHz) CATV Amplifier
The MHW8222 is designed specifically for up to 860 MHz CATV systems as amplifiers in trunk and line extender applications. These amplifiers feature ion–implanted, arsenic emitter transistors and an all gold metallization system. • Specified for 128–Channel Performance • Broadband Power Gain — @ f = 40–860 MHz
Gp = 22.3 dB Typ @ 860 MHz • Broadband Noise Figure
NF = 6.
MHW8222 Datasheet
