MC33FS4500CAE - Safety power system basis chip

Product Overview

NXP

MC33FS4500CAE Safety power system basis chip by NXP - Datasheet Preview — Datasheet preview – MC33FS4500CAE

Datasheet Details

Part number	MC33FS4500CAE
Manufacturer	NXP
File Size	2.94 MB
Description	Safety power system basis chip
Datasheet	MC33FS4500CAE Datasheet
Additional preview pages of the MC33FS4500CAE datasheet.

Product details

Description

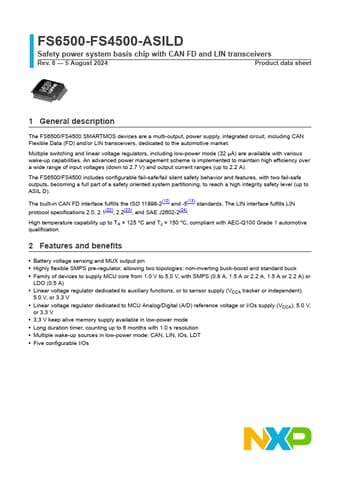

The FS6500/FS4500 SMARTMOS devices are a multi-output, power supply, integrated circuit, including CAN Flexible Data (FD) and/or LIN transceivers, dedicated to the automotive market.

Features

Battery voltage sensing and MUX output pin.
Highly flexible SMPS pre-regulator, allowing two topologies: non-inverting buck-boost and standard buck.
Family of devices to supply MCU core from 1.0 V to 5.0 V, with SMPS (0.8 A, 1.5 A or 2.2 A, 1.5 A or 2.2 A) or LDO (0.5 A).
Linear voltage regulator dedicated to auxiliary functions, or to sensor supply (VCCA tracker or independent), 5.0 V, or 3.3 V.
Linear voltage regulator dedicated to MCU Analog/Digit.
