MB2240 - 16-bit inverting buffer/line driver

NXP

The MB2240 by NXP is a 16-bit inverting buffer/line driver. Below is the official datasheet preview.

📥 Download Datasheet

MB2240 16-bit inverting buffer/line driver by NXP - Datasheet Preview — Official preview page of the **MB2240** 16-bit inverting buffer/line driver datasheet (NXP).

Datasheet Details

Part number	MB2240
Manufacturer	NXP
File Size	81.33 KB
Description	16-bit inverting buffer/line driver
Datasheet	MB2240_NXP.pdf

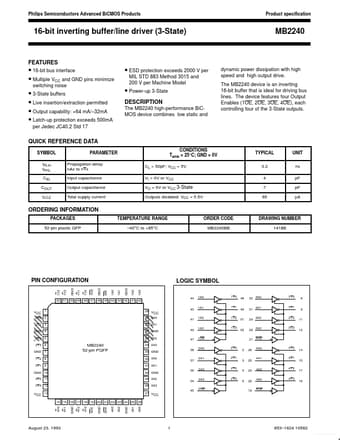

Additional preview pages of the MB2240 datasheet.

MB2240 Product details

Description

The MB2240 high-performance BiCMOS device combines low static and QUICK REFERENCE DATA SYMBOL tPLH tPHL CIN COUT ICCZ PARAMETER Propagation delay nAx to nYx Input capacitance Output capacitance Total supply current CONDITIONS Tamb = 25°C; GND = 0V CL = 50pF; VCC = 5V VI = 0V or VCC VO = 0V or VCC 3-State Outputs disabled; VCC = 5.5V TYPICAL 3.2 4 7 65 UNIT ns pF pF µA ORDERING INFORMATION PACKAGES 52-pin plastic QFP TEMPERATURE RANGE 40°C to +85°C ORDER CODE MB2240BB DRAWING NUMBER 14

Features

16-bit bus interface.
Multiple VCC and GND pins minimize switching noise.
ESD protection exceeds 2000 V per MIL STD 883 Method 3015 and 200 V per Machine Model dynamic power dissipation with high speed and high output drive. The MB2240 device is an inverting 16-bit buffer that is ideal for driving bus lines. The device features four Output Enables (1OE, 2OE, 3OE, 4OE), each controlling four of the 3-State outputs.
3-State buffers.
Live insertion.
