LPC4333 - 32-bit ARM Cortex-M4/M0 MCU

NXP

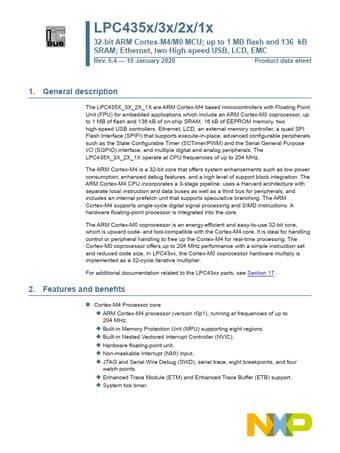

LPC4333 Datasheet Preview — Preview of LPC4333 PDF

Datasheet Details

Part number	LPC4333
Manufacturer	NXP ↗
File Size	7.18 MB
Description	32-bit ARM Cortex-M4/M0 MCU
Datasheet	LPC4333_NXP.pdf

LPC4333 Product details

Description

The LPC435X_3X_2X_1X are ARM Cortex-M4 based microcontrollers with Floating Point Unit (FPU) for embedded applications which include an ARM Cortex-M0 coprocessor, up to 1 MB of flash and 136 kB of on-chip SRAM, 16 kB of EEPROM memory, two high-speed USB controllers, Ethernet, LCD, an external memory controller, a quad SPI Flash Interface (SPIFI) that supports execute-in-place, advanced configurable peripherals such as the State Configurable Timer (SCTimer/PWM) and the Serial General Purpose I/O

Features

Cortex-M4 Processor core.
ARM Cortex-M4 processor (version r0p1), running at frequencies of up to 204 MHz.
Built-in Memory Protection Unit (MPU) supporting eight regions.
Built-in Nested Vectored Interrupt Controller (NVIC).
Hardware floating-point unit.
Non-maskable Interrupt (NMI) input.
JTAG and Serial Wire Debug (SWD), serial trace, eight breakpoints, and four watch points.
Enhanced Trace Module (ETM) and Enhanced Trace Buffer (ETB) support.
