HEF4052B - Dual 4-channel analogue multiplexer/demultiplexer

HEF4052B Description

HEF4052B Dual 4-channel analog multiplexer/demultiplexer Rev.10 * 25 March 2016 Product data sheet 1.General .
The HEF4052B is a dual 4-channel analog multiplexer/demultiplexer with common channel select logic.

HEF4052B Features

* Fully static operation
* 5 V, 10 V, and 15 V parametric ratings
* Standardized symmetrical output characteristics
* Specified from 40 C to +85 C and 40 C to +125 C

HEF4052B Applications

* Analog multiplexing and demultiplexing
* Digital multiplexing and demultiplexing
* Signal gating Nexperia HEF4052B Dual 4-channel analog multiplexer/demultiplexer 4. Ordering information Table 1. Ordering information All types operate from 40 C to +125 C. Type number Package N

📥 Download Datasheet

Preview of HEF4052B PDF

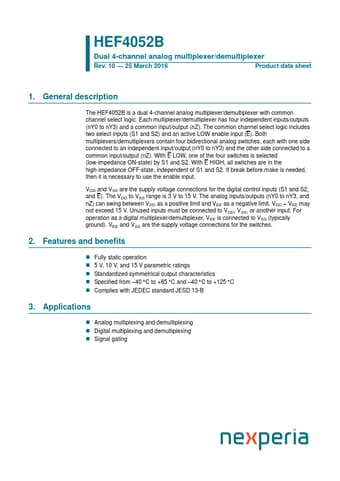

datasheet Preview Page 2 datasheet Preview Page 3
