CBT3245A - Octal bus switch

NXP

📥 Download Datasheet

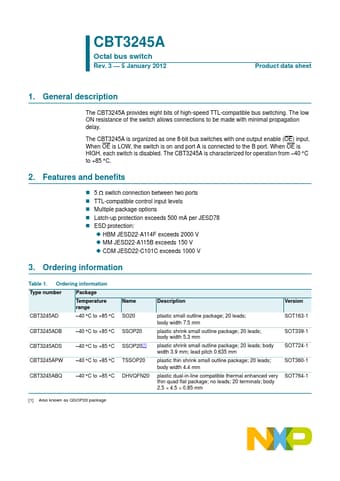

CBT3245A Datasheet Preview — Preview of CBT3245A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	CBT3245A
Manufacturer	NXP
File Size	183.77 KB
Description	Octal bus switch
Datasheet	CBT3245A-NXP.pdf

CBT3245A Product details

Description

The CBT3245A provides eight bits of high-speed TTL-compatible bus switching.

Features

5  switch connection between two ports.
TTL-compatible control input levels.
Multiple package options.
Latch-up protection exceeds 500 mA per JESD78.
ESD protection:.
HBM JESD22-A114F exceeds 2000 V.
MM JESD22-A115B exceeds 150 V.
CDM JESD22-C101C exceeds 1000 V 3. Ordering information Table 1. Ordering information Type number Package Temperature range CBT3245AD 40 C to +85 C CBT3245ADB 40 C to +85 C CBT3245ADS 40 C to +85 C CBT3245A.
