BYV28-300 - Ultra fast low-loss controlled avalanche rectifiers

NXP

The BYV28-300 by NXP is a Ultra fast low-loss controlled avalanche rectifiers. Below is the official datasheet preview.

📥 Download Datasheet

BYV28-300 Ultra fast low-loss controlled avalanche rectifiers by NXP - Datasheet Preview — Official preview page of the **BYV28-300** Ultra fast low-loss controlled avalanche rectifiers datasheet (NXP).

Datasheet Details

Part number	BYV28-300
Manufacturer	NXP
File Size	100.10 KB
Description	Ultra fast low-loss controlled avalanche rectifiers
Datasheet	BYV28-300_PhilipsSemiconductors.pdf

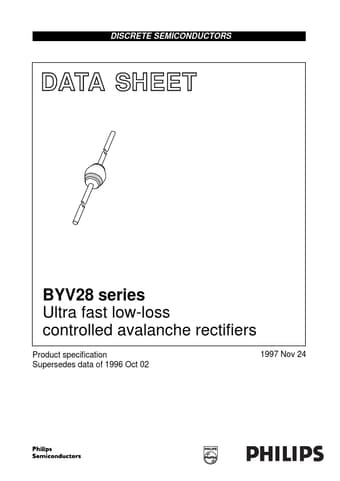

Additional preview pages of the BYV28-300 datasheet.

BYV28-300 Product details

Description

BYV28 series This package is hermetically sealed and fatigue free as coefficients of expansion of all used parts are matched.Rugged glass SOD64 package, using a high temperature alloyed construction.2/3 page k (Datasheet) Fig.1 Simplified outline (SOD64) and symbol.LIMITING VALUES In accordance with the Absolute Maximum Rating System (IEC 134).SYMBOL VRRM PARAMETER repetitive peak reverse voltage BYV28-50 BYV28-100 BYV28-150 BYV28-200 BYV28-300 BYV28-400 BYV28-500 BYV28-600 VR continuou

Features

Glass passivated.
High maximum operating temperature.
Low leakage current.
Excellent stability.
Guaranteed avalanche energy absorption capability.
Available in ammo-pack.
Also available with preformed leads for easy insertion.
