BYM26D - Fast soft-recovery controlled avalanche rectifiers

NXP

📥 Download Datasheet

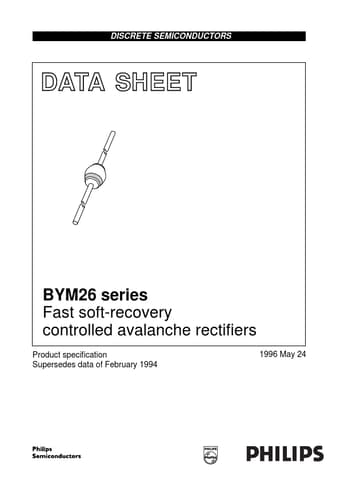

BYM26D Datasheet Preview — Preview of BYM26D PDF

Datasheet Details

Part number	BYM26D
Manufacturer	NXP
File Size	70.24 KB
Description	Fast soft-recovery controlled avalanche rectifiers
Datasheet	BYM26D_PhilipsSemiconductors.pdf

BYM26D Product details

Description

Rugged glass SOD64 package, using a high temperature alloyed BYM26 series construction.This package is hermetically sealed and fatigue free as coefficients of expansion of all used parts are matched.2/3 page k (Datasheet) Fig.1 Simplified outline (SOD64) and symbol.LIMITING VALUES In accordance with the Absolute Maximum Rating System (IEC 134).SYMBOL VRRM PARAMETER repetitive peak reverse voltage BYM26A BYM26B BYM26C BYM26D BYM26E BYM26F BYM26G VR continuous reverse voltage BYM26A BYM26B

Features

Glass passivated.
High maximum operating temperature.
Low leakage current.
Excellent stability.
Guaranteed avalanche energy absorption capability.
Available in ammo-pack.
Also available with preformed leads for easy insertion.
