BUK9214-30A - N-Channel MOSFET

NXP

📥 Download Datasheet

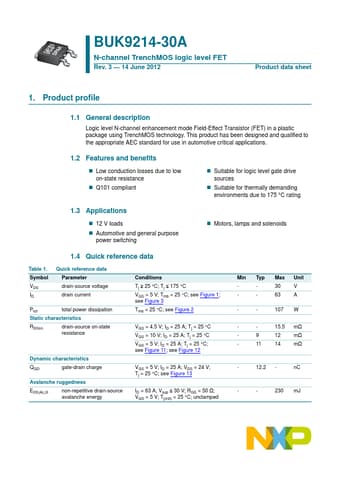

BUK9214-30A Datasheet Preview — Preview of BUK9214-30A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	BUK9214-30A
Manufacturer	NXP
File Size	187.99 KB
Description	N-Channel MOSFET
Datasheet	BUK9214-30A_PhilipsSemiconductors.pdf

BUK9214-30A Product details

Description

Logic level N-channel enhancement mode Field-Effect Transistor (FET) in a plastic package using TrenchMOS technology.

Features

Low conduction losses due to low on-state resistance.
Q101 compliant.
Suitable for logic level gate drive sources.
Suitable for thermally demanding environments due to 175 °C rating 1.3.
