BUK106-50S - PowerMOS transistor Logic level TOPFET

Name: BUK106-50S
SKU: BUK106-50S-365161

NXP

📥 Download Datasheet

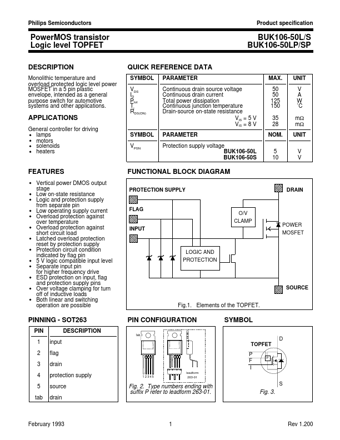

BUK106-50S Datasheet Preview — Preview of BUK106-50S PDF

Datasheet Details

Part number	BUK106-50S
Manufacturer	NXP
File Size	143.48 KB
Description	PowerMOS transistor Logic level TOPFET
Datasheet	BUK106-50S_PhilipsSemiconductors.pdf

BUK106-50S Product details

Description

Monolithic temperature and overload protected logic level power MOSFET in a 5 pin plastic envelope, intended as a general purpose switch for automotive systems and other applications.

Features

Vertical power DMOS output stage Low on-state resistance Logic and protection supply from separate pin Low operating supply current Overload protection against over temperature Overload protection against short circuit load Latched overload protection reset by protection supply Protection circuit condition indicated by flag pin 5 V logic compatible input level Separate input pin for higher frequency drive ESD protection on input, flag and protection supply pins Over voltage clamping for turn off.
