BU4523DF - Silicon Diffused Power Transistor

Name: BU4523DF
SKU: BU4523DF-364875

NXP

📥 Download Datasheet

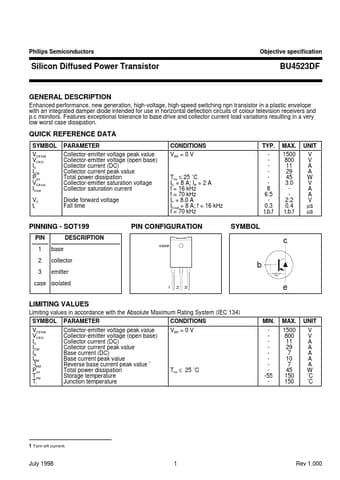

BU4523DF Datasheet Preview — Preview of BU4523DF PDF

Datasheet Details

Part number	BU4523DF
Manufacturer	NXP
File Size	21.49 KB
Description	Silicon Diffused Power Transistor
Datasheet	BU4523DF_PhilipsSemiconductors.pdf

BU4523DF Product details

Description

Enhanced performance, new generation, high-voltage, high-speed switching npn transistor in a plastic envelope with an integrated damper diode intended for use in horizontal deflection circuits of colour television receivers and p.c monitors.

Features

exceptional tolerance to base drive and collector current load variations resulting in a very low worst case dissipation. QUICK.
