BT138-600D - 4Q Triac

NXP

The BT138-600D by NXP is a 4Q Triac. Below is the official datasheet preview.

📥 Download Datasheet

BT138-600D 4Q Triac by NXP - Datasheet Preview — Official preview page of the **BT138-600D** 4Q Triac datasheet (NXP).

Datasheet Details

Part number	BT138-600D
Manufacturer	NXP
File Size	181.21 KB
Description	4Q Triac
Datasheet	BT138-600D-NXP.pdf

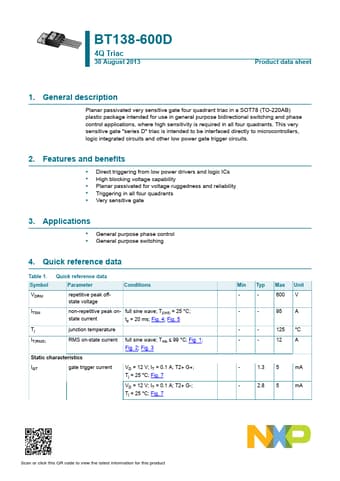

Additional preview pages of the BT138-600D datasheet.

BT138-600D Product details

Description

Planar passivated very sensitive gate four quadrant triac in a SOT78 (TO-220AB) plastic package intended for use in general purpose bidirectional switching and phase control applications, where high sensitivity is required in all four quadrants.

Features

Direct triggering from low power drivers and logic ICs.
High blocking voltage capability.
Planar passivated for voltage ruggedness and reliability.
Triggering in all four quadrants.
Very sensitive gate 3.
