BT137-500F - Triacs

Description

Glass passivated triacs in a plastic envelope, intended for use in applications requiring high bidirectional transient and blocking voltage capability and high thermal cycling performance.

Typical applications include motor control, industrial and domestic lighting, heating and static switching.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BT137-500 TRIACS Comset Semiconductors
BT137-500E Triacs INCHANGE
BT137-600 4 Quadrants Triacs ADV
BT137-600 8A TRIAC KCD
BT137-600 Triacs Inchange Semiconductor

Other Datasheets by NXP Semiconductors

Part Number Description
BT137-500 Triacs
BT137-500D Triacs logic level
BT137-500E Triacs
BT137-500G Triacs
BT137-600 4Q Triac

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

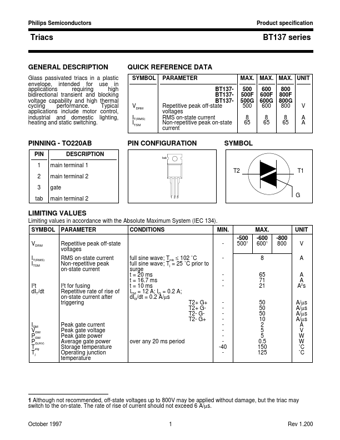

Philips Semiconductors Product specification Triacs BT137 series GENERAL DESCRIPTION Glass passivated triacs in a plastic envelope, intended for use in applications requiring high bidirectional transient and blocking voltage capability and high thermal cycling performance. Typical applications include motor control, industrial and domestic lighting, heating and static switching. QUICK REFERENCE DATA SYMBOL PARAMETER BT137BT137BT137Repetitive peak off-state voltages RMS on-state current Non-repetitive peak on-state current MAX. MAX. MAX.
