BT134-600D - 4Q Triac

Name: BT134-600D
SKU: BT134-600D-121544

NXP

📥 Download Datasheet

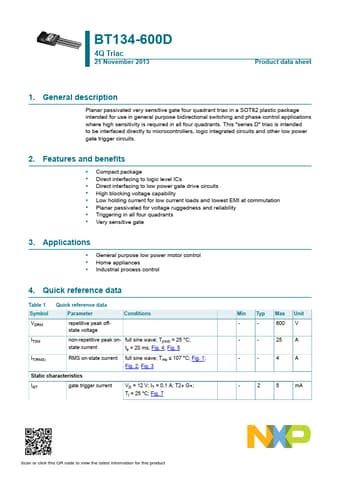

BT134-600D Datasheet Preview — Preview of BT134-600D PDF

Datasheet Details

Part number	BT134-600D
Manufacturer	NXP
File Size	167.98 KB
Description	4Q Triac
Datasheet	BT134-600D_PhilipsSemiconductors.pdf

BT134-600D Product details

Description

Planar passivated very sensitive gate four quadrant triac in a SOT82 plastic package intended for use in general purpose bidirectional switching and phase control applications where high sensitivity is required in all four quadrants.

Features

Compact package.
Direct interfacing to logic level ICs.
Direct interfacing to low power gate drive circuits.
High blocking voltage capability.
Low holding current for low current loads and lowest EMI at commutation.
Planar passivated for voltage ruggedness and reliability.
Triggering in all four quadrants.
Very sensitive gate 3.
