BT132-600D - 4Q Triac

Name: BT132-600D
SKU: BT132-600D-121534

NXP

The BT132-600D by NXP is a 4Q Triac. Below is the official datasheet preview.

📥 Download Datasheet

BT132-600D 4Q Triac by NXP - Datasheet Preview — Official preview page of the **BT132-600D** 4Q Triac datasheet (NXP).

Datasheet Details

Part number	BT132-600D
Manufacturer	NXP
File Size	174.23 KB
Description	4Q Triac
Datasheet	BT132-600D_PhilipsSemiconductors.pdf

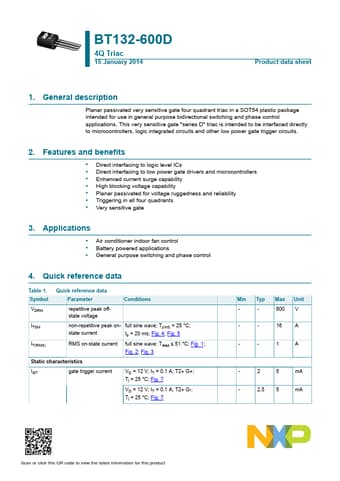

Additional preview pages of the BT132-600D datasheet.

BT132-600D Product details

Description

Planar passivated very sensitive gate four quadrant triac in a SOT54 plastic package intended for use in general purpose bidirectional switching and phase control applications.

Features

Direct interfacing to logic level ICs.
Direct interfacing to low power gate drivers and microcontrollers.
Enhanced current surge capability.
High blocking voltage capability.
Planar passivated for voltage ruggedness and reliability.
Triggering in all four quadrants.
Very sensitive gate 3.
