BGY280 Datasheet (NXP) - UHF amplifier module

BGY280, UHF amplifier module

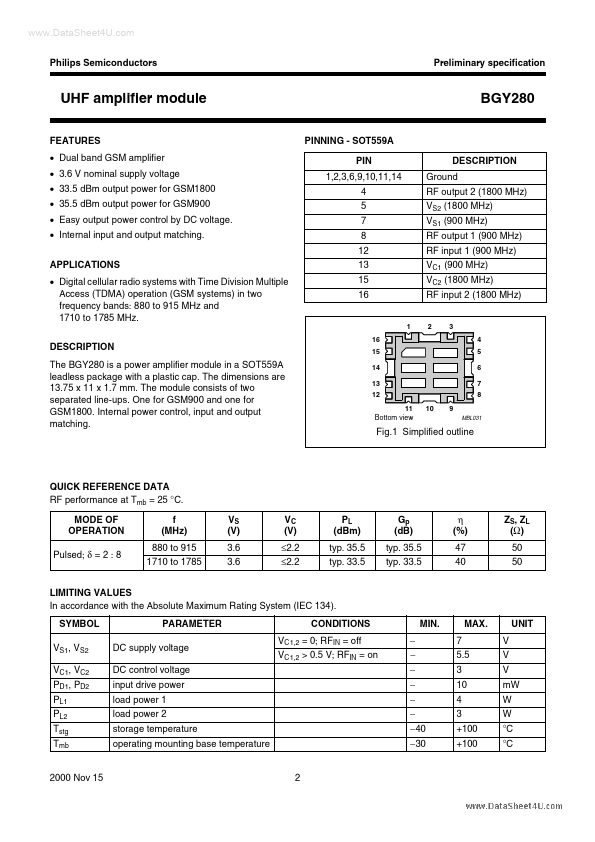

The BGY280 is a power amplifier module in a SOT559A leadless package with a plastic cap.

The dimensions are 13.75 x 11 x 1.7 mm.

The module consists of two separated line-ups.

One for GSM900 and one for GSM1800.

Internal power control, input and output matching.

PINNING - SOT559A PIN 1,2,3,6,9,10,11

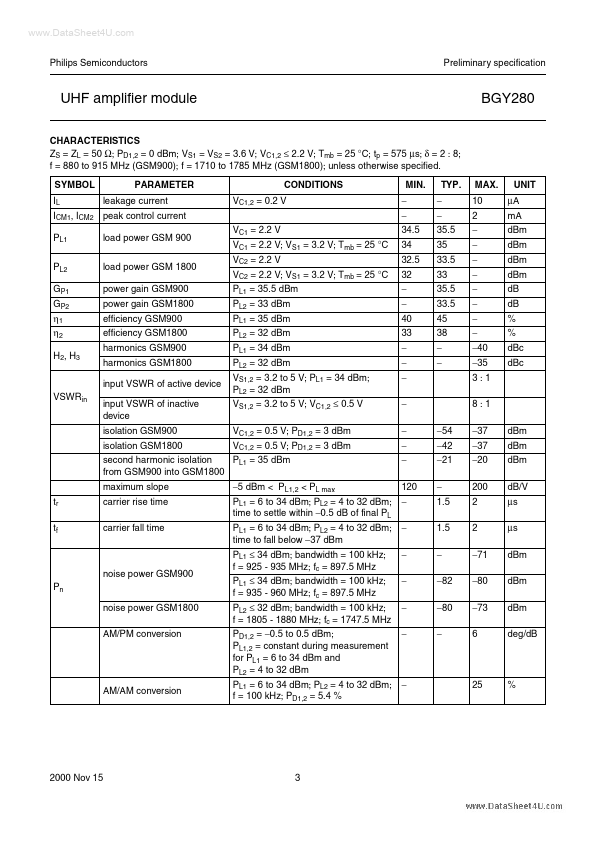

BGY280 Features

* Dual band GSM amplifier

* 3.6 V nominal supply voltage

* 33.5 dBm output power for GSM1800

* 35.5 dBm output power for GSM900

* Easy output power control by DC voltage.

* Internal input and output matching. APPLICATIONS

* Digital cellular rad
