BGY240S Datasheet - NXP

BGY240S UHF amplifier module

The BGY240S is a three-stage UHF amplifier module in a SOT388C package. The module consists of three NPN silicon planar transistor dies mounted together with matching and bias circuit components on a metallized ceramic substrate. PINNING - SOT388C PIN 1 2 3 4 Flange VC VS RF output ground BGY240S .

BGY240S Datasheet (123.99 KB)

Preview of BGY240S PDF

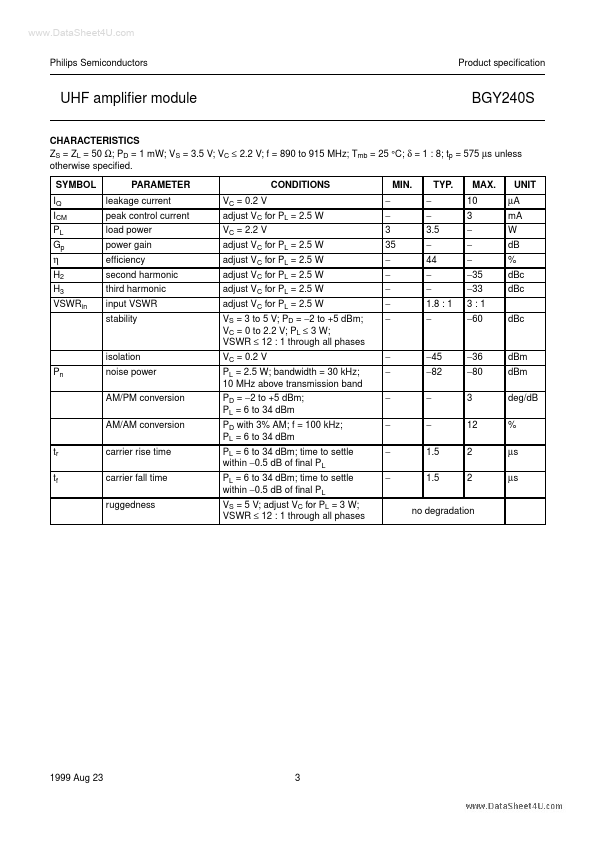

BGY240S Datasheet Preview Page 2 BGY240S Datasheet Preview Page 3

Datasheet Details

Part number:

BGY240S

Manufacturer:

NXP ↗

File Size:

123.99 KB

Description:

Uhf amplifier module.
