BCX51PA, BCX51 PNP medium power transistors

BCX51PA Description

BCP51; BCX51; BC51PA 45 V, 1 A PNP medium power transistors Rev.9 * 13 October 2011 Product data sheet 1.Product profile 1.1 General des.
PNP medium power transistor series in Surface-Mounted Device (SMD) plastic packages.

BCX51PA Features

* High current
* Three current gain selections
* High power dissipation capability
* Exposed heatsink for excellent thermal and electrical conductivity (SOT89, SOT1061)
* Leadless very small SMD plastic package with medium power capability (SOT1061)
* AEC-Q101 qualified 1.3

BCX51PA Applications

* Linear voltage regulators
* High-side switches
* Battery-driven devices
* Power management
* MOSFET drivers
* Amplifiers 1.4 Quick reference data Table 2. Symbol VCEO IC ICM Quick reference data Parameter Conditions collector-emitter voltage open base collector curre

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BCX51PA, BCX51. Please refer to the document for exact specifications by model.

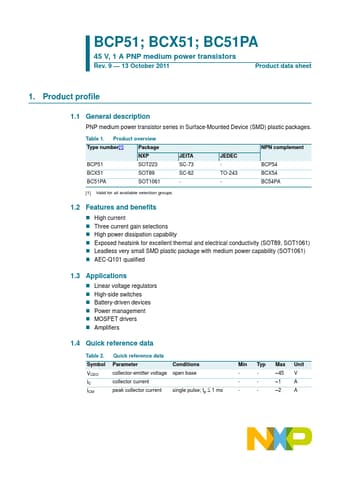

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BCX51PA, BCX51
Manufacturer
NXP ↗
File Size
196.20 KB
Datasheet
BCX51_PhilipsSemiconductors.pdf
Description
PNP medium power transistors
Note
This datasheet PDF includes multiple part numbers: BCX51PA, BCX51.
Please refer to the document for exact specifications by model.
