PTN3331 - High speed differential line driver

Name: PTN3331
SKU: PTN3331-678859

NXP Semiconductors

📥 Download Datasheet

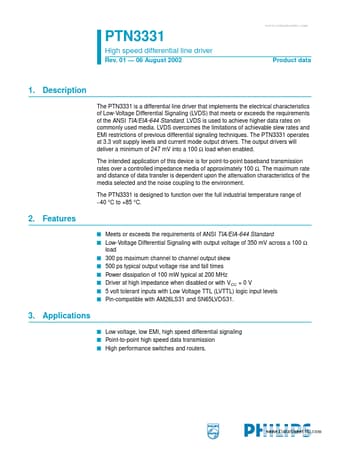

PTN3331 Datasheet Preview — Preview of PTN3331 PDF

Datasheet Details

Part number	PTN3331
Manufacturer	NXP Semiconductors
File Size	261.98 KB
Description	High speed differential line driver
Datasheet	PTN3331_NXPSemiconductors.pdf

PTN3331 Product details

Description

The PTN3331 is a differential line driver that implements the electrical characteristics of Low-Voltage Differential Signaling (LVDS) that meets or exceeds the requirements of the ANSI TIA/EIA-644 Standard.

Features

s Meets or exceeds the requirements of ANSI TIA/EIA-644 Standard s Low-Voltage Differential Signaling with output voltage of 350 mV across a 100 Ω load s 300 ps maximum channel to channel output skew s 500 ps typical output voltage rise and fall times s Power dissipation of 100 mW typical at 200 MHz s Driver at high impedance when disabled or with VCC = 0 V s 5 volt tolerant inputs with Low Voltage TTL (LVTTL) logic input levels s Pin-compatible with AM26LS31 and SN65LVDS31. 3.
