PN511 - Transmission Module

Description

The PN511 is a highly integrated transceiver IC for contactless communication at 13.56 MHz.

This transceiver IC utilizes an outstanding modulation and demodulation concept completely integrated for different kinds of contactless communication methods and protocols at 13.56 MHz.

Features

  • Highly integrated analog circuitry to demodulate and decode responses.
  • Buffered output drivers to connect an antenna with minimum number of external components.
  • Integrated RF Level detector.
  • Integrated data mode detector.
  • ISO 14443A/Mifare support.
  • Typical operating distance in Reader/Writer mode for communication to a ISO 14443A/ Mifare or FeliCa card up to 50 mm depending on the antenna size, tuning and power supply.
  • Typical opera.

📥 Download Datasheet

Datasheet Details

Part number PN511
Manufacturer NXP Semiconductors
File Size 487.72 KB
Description Transmission Module
Datasheet download datasheet PN511 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
PN5114 Switching Micross
PN5115 Switching Micross
PN5116 Switching Micross
PN512 Full NFC frontend NXP
PN5127 Small Signal Transistors Central Semiconductor

Other Datasheets by NXP Semiconductors

Part Number Description
PN531 Transmission module
PN532 NFC controller
PN544 Near field communication (NFC) controller

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

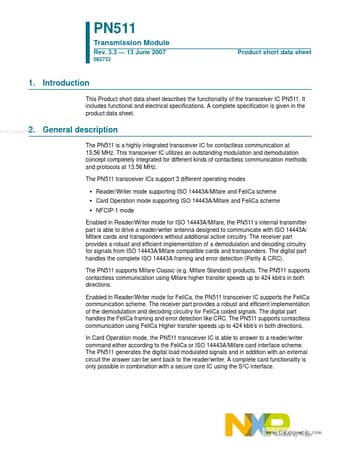

PN511 Transmission Module Rev. 3.3 — 13 June 2007 082733 Product short data sheet 1. Introduction This Product short data sheet describes the functionality of the transceiver IC PN511. It includes functional and electrical specifications. A complete specification is given in the product data sheet. www.DataSheet4U.com 2. General description The PN511 is a highly integrated transceiver IC for contactless communication at 13.56 MHz. This transceiver IC utilizes an outstanding modulation and demodulation concept completely integrated for different kinds of contactless communication methods and protocols at 13.56 MHz.
