PMEG2010EPK - low VF MEGA Schottky barrier rectifier

NXP Semiconductors

📥 Download Datasheet

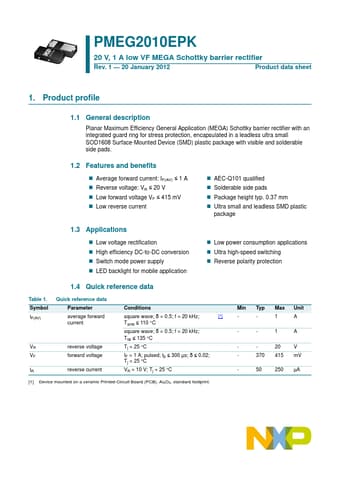

PMEG2010EPK Datasheet Preview — Preview of PMEG2010EPK PDF

Datasheet Details

Part number	PMEG2010EPK
Manufacturer	NXP Semiconductors
File Size	1.12 MB
Description	low VF MEGA Schottky barrier rectifier
Datasheet	PMEG2010EPK_NXPSemiconductors.pdf

PMEG2010EPK Product details

Description

Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in a leadless ultra small SOD1608 Surface-Mounted Device (SMD) plastic package with visible and solderable side pads.

Features

Average forward current: IF(AV) ≤ 1 A.
Reverse voltage: VR ≤ 20 V.
Low forward voltage VF ≤ 415 mV.
Low reverse current.
AEC-Q101 qualified.
Solderable side pads.
Package height typ. 0.37 mm.
Ultra small and leadless SMD plastic package 1.3.
