P89LPC912 - (P89LPC912 - P89LPC914) 8-bit microcontrollers

NXP Semiconductors

📥 Download Datasheet

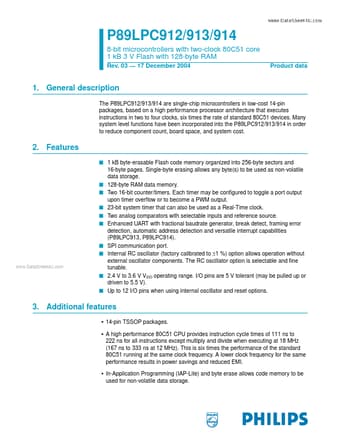

P89LPC912 Datasheet Preview — Preview of P89LPC912 PDF

Datasheet Details

Part number	P89LPC912
Manufacturer	NXP Semiconductors
File Size	386.20 KB
Description	(P89LPC912 - P89LPC914) 8-bit microcontrollers
Datasheet	P89LPC912_NXPSemiconductors.pdf

P89LPC912 Product details

Description

The P89LPC912/913/914 are single-chip microcontrollers in low-cost 14-pin packages, based on a high performance processor architecture that executes instructions in two to four clocks, six times the rate of standard 80C51 devices.

Features

s 1 kB byte-erasable Flash code memory organized into 256-byte sectors and 16-byte pages. Single-byte erasing allows any byte(s) to be used as non-volatile data storage. s 128-byte RAM data memory. s Two 16-bit counter/timers. Each timer may be conﬁgured to toggle a port output upon timer overﬂow or to become a PWM output. s 23-bit system timer that can also be used as a Real-Time clock. s Two analog comparators with selectable inputs and reference source. s Enhanced UART with fractional baudrat.
