P89LPC904 - 8-bit microcontrollers

Name: P89LPC904
SKU: P89LPC904-668749

NXP Semiconductors

📥 Download Datasheet

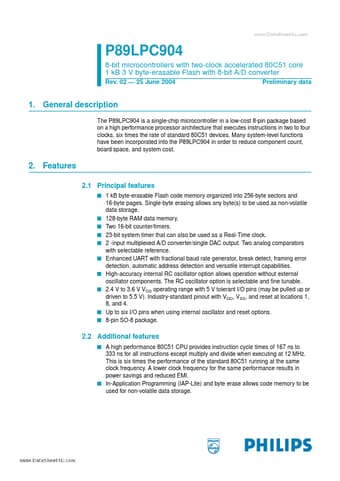

P89LPC904 Datasheet Preview — Preview of P89LPC904 PDF

Datasheet Details

Part number	P89LPC904
Manufacturer	NXP Semiconductors
File Size	235.88 KB
Description	8-bit microcontrollers
Datasheet	P89LPC904_NXPSemiconductors.pdf

P89LPC904 Product details

Description

The P89LPC904 is a single-chip microcontroller in a low-cost 8-pin package based on a high performance processor architecture that executes instructions in two to four clocks, six times the rate of standard 80C51 devices.

Features

2.1 Principal features s 1 kB byte-erasable Flash code memory organized into 256-byte sectors and 16-byte pages. Single-byte erasing allows any byte(s) to be used as non-volatile data storage. s 128-byte RAM data memory. s Two 16-bit counter/timers. s 23-bit system timer that can also be used as a Real-Time clock. s 2 -input multiplexed A/D converter/single DAC output. Two analog comparators with selectable reference. s Enhanced UART with fractional baud rate generator, break detect, framing err.
