NE600 - 1GHz LNA and mixer

NXP Semiconductors

General Description

The NE/SA600 is a combined low noise amplifier (LNA) and mixer designed for high-performance low-power communication systems from 800-1200MHz.

The low-noise preamplifier has a 2dB noise www.datasheet4u.com figure at 900MHz with 16dB gain and an IM3 intercept of -10dBm at the input.

Key Features

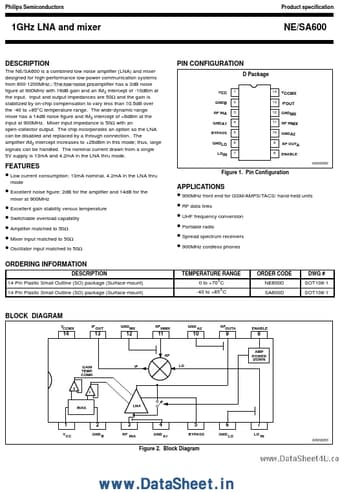

SR00082 Figure 1. Pin Configuration.
Excellent noise figure: 2dB for the amplifier and 14dB for the mixer at 900MHz.

📥 Download Datasheet

NE600 1ghz lna and mixer by NXP Semiconductors - Datasheet Preview

Datasheet Details

Part number	NE600
Manufacturer	NXP Semiconductors
File Size	209.10 KB
Description	1GHz LNA and mixer
Datasheet	NE600 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
NE602	NE602	ETC
NE602	Double-Balanced Mixer and Oscillator	Philips
NE602A	Double-Balanced Mixer and Oscillator	Philips
NE604A	High Performance Low Power FM IF System	Philips
NE605	HIGH PERFORMANCE LOW POWER MIXER FM IF SYSTEM	NXP

Other Datasheets by NXP Semiconductors

Part Number	Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

Philips Semiconductors Product specification 1GHz LNA and mixer NE/SA600 DESCRIPTION The NE/SA600 is a combined low noise amplifier (LNA) and mixer designed for high-performance low-power communication systems from 800-1200MHz. The low-noise preamplifier has a 2dB noise www.datasheet4u.com figure at 900MHz with 16dB gain and an IM3 intercept of -10dBm at the input. Input and output impedances are 50Ω and the gain is stabilized by on-chip compensation to vary less than ±0.5dB over the -40 to +85°C temperature range. The wide-dynamic-range mixer has a 14dB noise figure and IM3 intercept of +6dBm at the input at 900MHz. Mixer input impedance is 50Ω with an open-collector output. The chip incorporates an option so the LNA can be disabled and replaced by a through connection.
