MF3ICD61 - (MF3ICDx1) MIFARE DESFire EV1 contactless multi-application IC

Download the MF3ICD61 datasheet PDF. This datasheet also covers the MF3ICD21 variant, as both devices belong to the same (mf3icdx1) mifare desfire ev1 contactless multi-application ic family and are provided as variant models within a single manufacturer datasheet.

Description

MIFARE DESFire EV1 is ideal for service providers wanting to use multi-application smart cards in transport schemes, eGovernment or identity applications.

Features

  • www. datasheet4u. com 2.1 Key features I I I I I I I I I I I I I Fully ISO/IEC 14443 type A 1 to 4 compliant 8 KB EEPROM with fast programming1 Secure, high-speed command set Flexible file structure Anti-collision Unique 7-byte serial number (ISO cascade level 2) Data integrity: CRC and bit counting on physical layer Open DES/3DES crypto algorithm in hardware Open AES128 crypto algorithm in hardware Based on NXP advanced 0.14 µm NV technology Fast data transfer: 106 kbit/s, 212 kbit/s, 424 kbit/s,.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MF3ICD21_NXPSemiconductors.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number MF3ICD61
Manufacturer NXP Semiconductors
File Size 116.39 KB
Description (MF3ICDx1) MIFARE DESFire EV1 contactless multi-application IC
Datasheet download datasheet MF3ICD61 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MF3ICD2101DUD MIFARE DESFire EV1 contactless multi-application IC NXP
MF3ICD4101DUD MIFARE DESFire EV1 contactless multi-application IC NXP
MF3ICD8101DUD MIFARE DESFire EV1 contactless multi-application IC NXP
MF3ICDH2101DUD MIFARE DESFire EV1 contactless multi-application IC NXP
MF3ICDH4101DUD MIFARE DESFire EV1 contactless multi-application IC NXP

Other Datasheets by NXP Semiconductors

Part Number Description
MF3ICD21 (MF3ICDx1) MIFARE DESFire EV1 contactless multi-application IC
MF3ICD41 (MF3ICDx1) MIFARE DESFire EV1 contactless multi-application IC

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

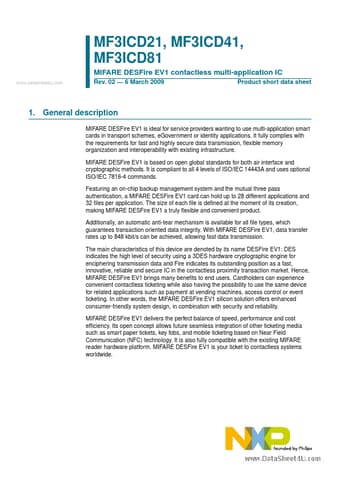

MF3ICD21, MF3ICD41, MF3ICD81 MIFARE DESFire EV1 contactless multi-application IC www.datasheet4u.com Rev. 02 — 6 March 2009 Product short data sheet 1. General description MIFARE DESFire EV1 is ideal for service providers wanting to use multi-application smart cards in transport schemes, eGovernment or identity applications. It fully complies with the requirements for fast and highly secure data transmission, flexible memory organization and interoperability with existing infrastructure. MIFARE DESFire EV1 is based on open global standards for both air interface and cryptographic methods. It is compliant to all 4 levels of ISO/IEC 14443A and uses optional ISO/IEC 7816-4 commands.
